What does RC2 window mean?

"RC2" stands for "Resistance Class 2" in accordance with DIN EN 1627-1630, which means that RC2 windows offer around 3 minutes of resistance against an inexperienced opportunist - but beware: the P4A glass provided is NOT tested and can usually be smashed in a matter of seconds! RC2 windows can therefore pose a security risk if they are only installed in accordance with the standard! The glass should be as secure as the window, for example SILATEC P6B glass.
4 minutes

Video: RC2 windows in a practical test

What resistance classes are there according to the standard?

Six in total. From RC1 with the lowest to RC6 with the highest security performance. Windows in resistance class RC2 generally offer solid basic protection against burglars using simple tools, i.e. against so-called opportunist thieves or inexperienced offenders. According to the guidelines, a window should offer resistance for around three minutes, but this is only a rough estimate.



In our view, resistance classes RC2, RC3 and RC4 are particularly important for residential buildings - although this naturally depends on the individual circumstances on site. Windows in class RC1 offer hardly any protection worth mentioning, while RC5 and RC6 are generally too solid for the private sector: with excessive face widths, high weight and limited sizes. RC5 or RC6 windows are more suitable for military bases or nuclear power stations.

Don't RC2 windows restrict the architectural signature?

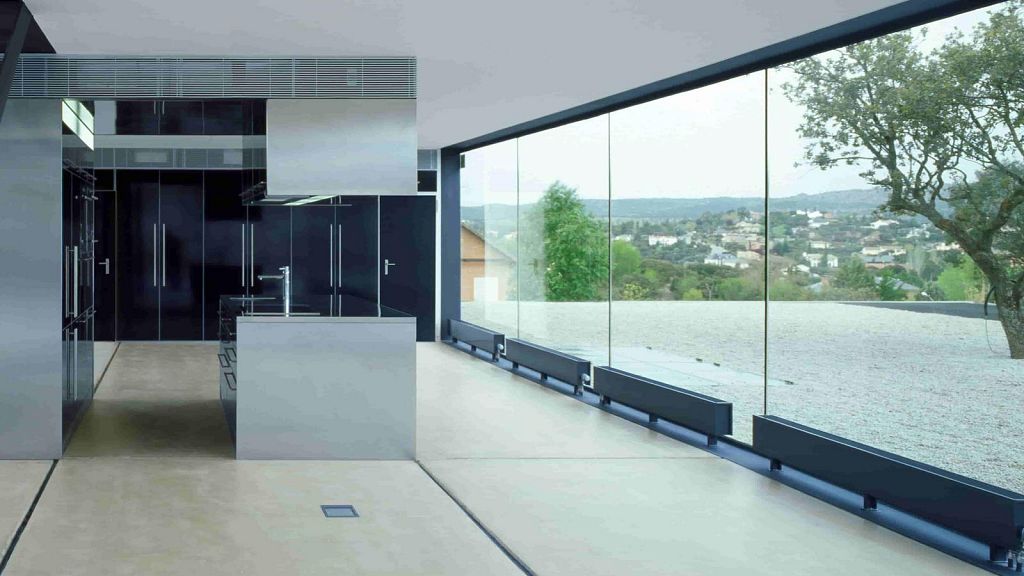

On the contrary: you can also install large-format RC2 windows several meters wide where you previously installed window grilles for security reasons. This allows you to create breathtaking views and flood the rooms with light and air.



What's more, RC2 windows look virtually indistinguishable from "normal" windows. They are available in a wide variety of colors, formats and materials. A secure "fortress" therefore does not have to look like a fortress, but leaves practically all design options open.



If you take a closer look, you will recognize RC2 windows by the so-called mushroom head locking mechanism: imagine a mushroom with a round head. If this is pushed into a guide, the mushroom head tilts in the event of an attack and can thus lock securely. The larger RC2 windows are, the more locking points they contain. All the way around.

Contact us
TÜVISOVdS
+49 8171 9281 0
E-Mail schreiben
Wir antworten in wenigen Stunden

RC2 Windows: Conclusion

In summary, it can be said that an RC2 window is an effective measure for burglary protection. According to the DIN EN 1627:2021 II test standard, it offers around three minutes of resistance to an untrained perpetrator using a simple tool - but be careful: the glass is NOT attacked, i.e. tested. The intended P4A glass can usually be smashed after just a few seconds! It is logical that it should be as secure as the RC2 window, as is the case with SILATEC P6B security glass, for example.



The standard defines a total of 6 resistance classes, from RC1 with the lowest to RC6 with the highest security performance. RC2, RC3 or RC4 windows are generally recommended for upmarket properties and private homes. RC1 windows offer hardly any resistance, while RC5 and RC6 windows are more suitable for military facilities or nuclear power plants - all depending on the local conditions, of course.
